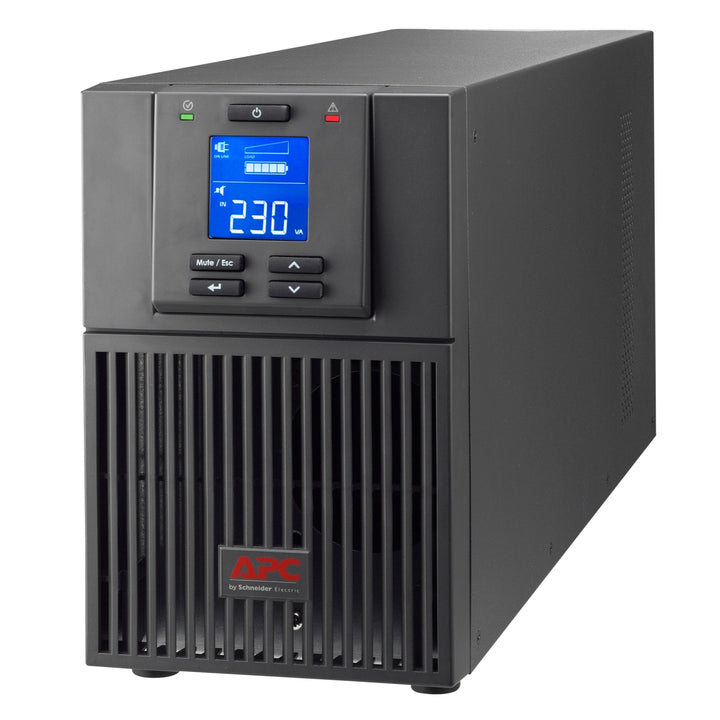

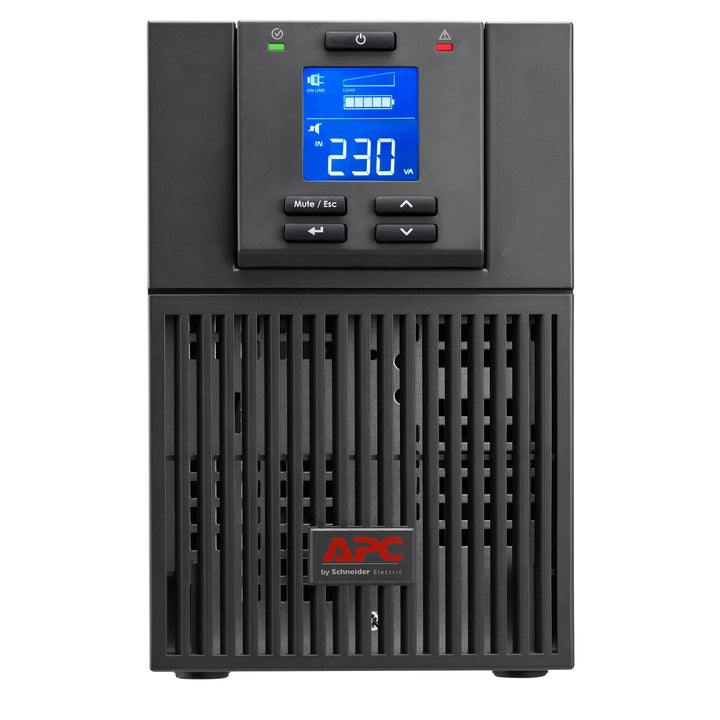

APC Easy UPS On-Line, 3kVA/2400W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD
The APC Easy UPS On-Line SRV3KI by Schneider Electric is a robust 3kVA/2400W double-conversion on-line UPS designed to provide reliable power protection for critical equipment in environments with unstable power conditions....
The APC Easy UPS On-Line SRV3KI by Schneider Electric is a robust 3kVA/2400W double-conversion on-line UPS designed to provide reliable power protection for critical equipment in environments with unstable power conditions. This tower UPS ensures a pure sine wave output at 230V, supporting a range of devices through its six IEC C13 and one IEC C19 outlets. The intelligent card slot and user-friendly LCD interface provide enhanced monitoring and management capabilities, delivering detailed and accurate information on UPS status.
Designed for efficiency, the SRV3KI features an energy-saving ECO mode and an intelligent temperature-compensated charging system that prolongs battery life. The lead-acid battery with a nominal voltage of 72V recharges in just 4 hours and offers a typical battery lifespan of 3 to 5 years. This UPS is an ideal choice for data centers, networking equipment, and other critical systems requiring reliable and uninterrupted power.
Specifications:
Feature | Description |
---|---|
Product Type | Uninterruptible Power Supply (UPS) |
Model | SRV3KI |
Rated Power | 3000VA / 2400W |
UPS Type | Double-conversion On-line |
Form Factor | Tower |
Output Voltage | 230V (220V, 240V configurable) |
Output Frequency | 50/60 Hz +/- 3 Hz Sync to mains |
Output Connector | 6x IEC 60320 C13, 1x IEC 60320 C19 |
Input Connector | IEC 60320 C20 |
Battery Type | Lead-acid battery |
Battery Voltage | 72V |
Battery Recharge Time | 4 hours |
Max Runtime | 4 minutes 24 seconds at full load |
Efficiency | 88% (full load) |
Display | Multifunction LCD |
Dimensions (H x W x D) | 33.6 cm x 19 cm x 42.5 cm |
Net Weight | 26.8 kg |
Colour | Black (RAL 7010) |
Mounting | Floor |
USB Compatible | Yes |
Certifications | CE, UKCA, EAC, TISI |
Operating Temperature | 0…40 °C |
Storage Temperature | -20…50 °C |
Relative Humidity (Operating) | 0…95% non-condensing |
Relative Humidity (Storage) | 0…95% non-condensing |
Operating Altitude | 0…3000 m |
Storage Altitude | 0…15000 m |
Noise Level | 50 dB |
Heat Dissipation | 910 Btu/h |
Protection | Surge energy rate: 600 J |
Warranty | 2 years repair or replace |
Environmental Performance:
- Sustainable by Design: Built with sustainability in focus.
- Green Premium™: Ensures adherence to high environmental standards.
- Transparency: Meets RoHS and REACh compliance.
Compatible with:
- Replacement Battery: APCRBCV205 for continuous power support.
- Software: PowerChute Serial Shutdown, v1.2 for effective power management.
- Extended Warranty Services: WBEXTWAR1YR-SE-03 for additional protection.
