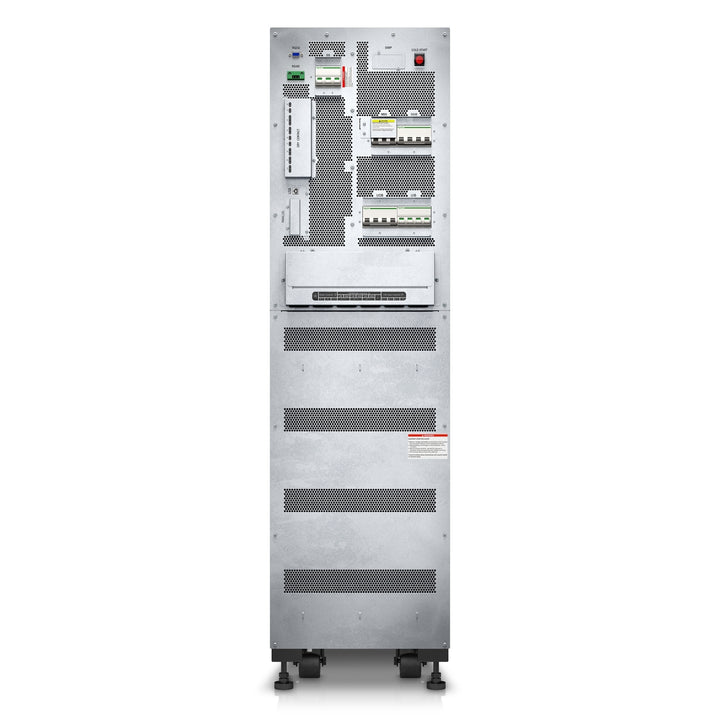

Easy UPS 3S 20kVA 400V 3:3 E3SUPS20KHB1

The APC Easy UPS 3S 20kVA 400V 3:3 UPS E3SUPS20KHB1 is a high-capacity, three-phase uninterruptible power supply (UPS) designed for critical applications where robust power protection and reliability are essential. It is suitable for medium to large-sized data centers, industrial environments, and other facilities requiring substantial power backup and stability.

Key Features:

1. Capacity:

   • 20kVA: Provides significant power capacity, making it suitable for large loads including multiple servers, networking equipment, and other critical infrastructure.

2. Input and Output:

   • Input Voltage: 400 V 3 phases

   • Output Voltage: 380 V / 415 V

   • Rated power in W:  20KW

   • Rated power in VA: 20KW

3. Type:

   • Double conversion online

4. Batteries:

   • Battery Type: VRLA
   • Battery voltage:  240V

   • Maximum short-circuit current: 10 KA

   • Number of battery filled slots: 2

   • Number of battery free slots:  1

5. Input

   • Maximum input current: 37A
   • Input harmonic distortion: Less than 3 % for full load

   • Load power factor: 0.9 leading to 0.9 lagging
   • Input Power Factor at Full Load: 0.99

   • Input voltage limits: 304...477 V
   • Network frequency: 45...65 Hz

6. Output:

   • Maximum configurable power in VA: 20 KVA

   • Maximum configurable power in W: 20 KW
   • Output frequency: 50 Hz sync to mains / 60 Hz sync to mains

   • Harmonic distortion: Less than 3 %
   • Output harmonic distortion: < 3% linear load

   • Output voltage tolerance: +/- 1.5 %

7. Physical:

   • Height: 140 cm

   • Width: 38 cm
   • Depth:  92.8 cm

   • Net weight: 446 Kg

   • USB compatible: Yes

8. Packing Units:

   • Number of Units in Package1:  1

   • :Package 1 Height: 164 cm

   • Package 1 Width: 101.4 cm

   • Package 1 Length: 56.3 cm

   • Package 1 Weight: 494 Kg


If you need more details or have specific questions about this UPS model, feel free to ask!

1- Placement: Install the UPS in a rack or designated area that allows for proper ventilation and access for maintenance.
2- Connection: Connect the UPS to a three-phase power source and integrate it with the facility’s electrical system.
Configure the UPS settings according to the specific requirements of the connected equipment.

1. Data Centers
Server Protection: Provides reliable power backup for critical servers, ensuring uninterrupted operation during power outages and voltage fluctuations.
Data Storage: Protects data storage systems from power disturbances, helping to prevent data loss and downtime.
Network Equipment: Ensures continuous operation of network infrastructure such as routers, switches, and firewalls.
2. Industrial Applications
Manufacturing Equipment: Protects essential industrial machinery and production lines from power disruptions, minimizing downtime and avoiding costly interruptions.
Automation Systems: Supports automated systems and control panels, ensuring that operations continue smoothly during power outages.
Process Control: Provides backup power to process control systems, safeguarding against data loss and maintaining process stability.
3. Commercial Buildings
Office Complexes: Ensures that critical systems such as building management systems (BMS), security systems, and telecommunications remain operational during power failures.
Retail Operations: Protects point-of-sale (POS) systems, inventory management systems, and other critical infrastructure in retail environments.
4. Healthcare Facilities
Medical Equipment: Safeguards sensitive medical equipment and life-support systems, ensuring continuous operation and protecting patient care.
Laboratories: Protects laboratory equipment and research instruments, preventing data loss and equipment damage during power interruptions.
5. Financial Institutions
Banking Systems: Ensures that financial transaction systems, ATMs, and back-office operations remain functional during power outages.
Data Security: Protects critical financial data and systems from power-related disruptions, maintaining the integrity and availability of financial services.
6. Telecommunications
Telecom Equipment: Provides backup power for telecommunications equipment, including base stations, exchanges, and network operations centers.
Emergency Services: Supports communication systems used in emergency services and public safety operations, ensuring they remain operational during power failures.
7. Large Retail and Commercial Operations
Large Stores and Malls: Ensures that essential services such as lighting, security systems, and heating/air conditioning systems remain operational during power outages.
Logistics and Warehousing: Protects logistics management systems and automated warehousing equipment, minimizing disruption in supply chain operations.

The Easy UPS 3S 20kVA 400V 3:3 UPS E3SUPS20KHB1 is a powerful and versatile UPS suitable for a range of high-demand applications, including data centers, industrial environments, commercial buildings, healthcare facilities, financial institutions, and telecommunications. Its robust capacity and features make it an effective solution for ensuring continuous power protection and minimizing downtime in critical settings.
